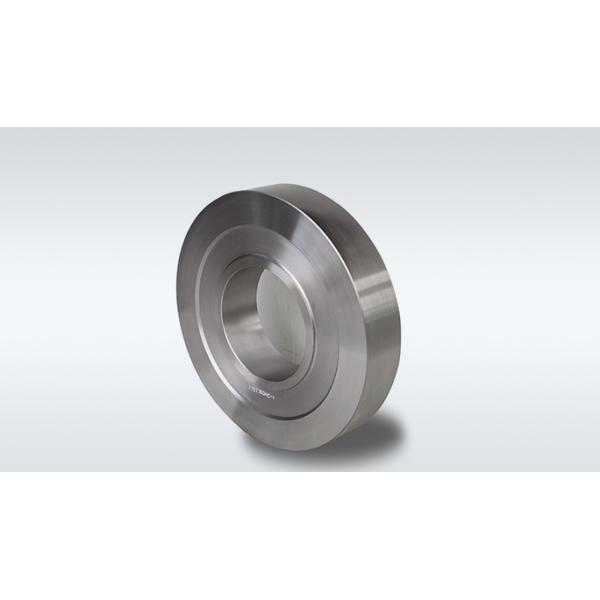

Open Die Forged AISI4140 Out Diameter 3000mm Forged Gear Blanks Used For Bearing Valve

Place of Origin : Jiangsu

Brand Name : Golden

Certification : ISO9001,UL,CE

Model Number : Customized

MOQ : 1 pc

Price : 30usd to 2500usd

Packaging Details : Box Or Wooden Package

Delivery Time : 7-25 working days

Payment Terms : L/C, T/T, Paypal

Supply Ability : 3000 tons/month

Name : Forged Steel Products

Forged : Alloy Steel

Type : Hot Forgings

High Light : open die forge, stainless steel forgings

Hot Forgings : Carbon Steel,alloy Steel，SS

Rolled Rings : Stainless Steel

Scope : Oil And Gas， Gear Box

Contact Now

Open Die Forged AISI4140 Out Diameter 3000mm Forged Gear Blanks Used For Bearing Valve

 Open Die Forged AISI4140 Out Diameter 3000mm Forged Gear Blanks Used For Bearing Valve Open Die Forged AISI4140 Out Diameter 3000mm Forged Gear Blanks Used For Bearing Valve

Open Die Forging AISI4140 42crmo4 5000mm Forging Steel Gear Blank

Material: 40Cr,45#,42CrMo,40CrNiMo,etc
1. Process: EAF + LF + VD + Forged + Heat Treatment (optional)
2. Delivery condition:Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
3. Technical Data: Chemical Composition, Physical Properties and Mechanical Testing.
4. Test: Ultrasonic test according to SEP 1921-84 3C/c.
5. Standard: GB, AISI, ASTM, DIN, JIS, BS, etc.
6. Quality Management Certification: ISO 9001:2008.
7. Note: We can only handle forged products.We don't supply rolled steel products.

Product Name Specification(mm) Main Materials
1045 forged steel shaft Dia:Φ80mm~Φ1000mm
Weight≤18T
Length≤12000mm		 40Cr,45#,42CrMo,
40CrNiMo,etc

If you are concerned about 1045 forged steel shaft, maybe you will be interested in the following products:

Product Name Specification(mm) Material
Forged Round Bar OD:Φ200-Φ1000
Weight≤18T
Length≤12000mm		 18CrNiMo7-6,
42CrMo,34CrNi3Mo,
35CrMo,4330V
Forged Hollow Bar OD:Φ200-Φ1000
Weight≤18T
Length≤9500mm		 18CrNiMo7-6,
42CrMo,34CrNi3Mo,
35CrMo,4330V
Forged Module Width≤1000mm H13,
5CrNiMo,
5CrMnMo,etc
Forged Shaft DiameterΦ80-Φ1000
Length≤12000mm
Weight≤18T		 40Cr,45#,
42CrMo,
40CrNiMo,etc
Forged Roller Diameter≤Φ1000mm 86CrMoV7,
9Cr2Mo,
MC3,MC5,etc
Forged Ring&Disc OD≤Φ1500mm
Thickness≤500mm		 20CrNi2Mo,
40Cr,42CrMo,
21CrNiMoV47,etc
Item Process Facility Inspection items Standard

01		 Steel material
inspection		 Chemical composition
(EF+LF+VD)		 Material standard
surface Ingot inspection
specification
Ingot type and weight Material standard
02 Material
store		 Division put warehouse management
1 Heat Heat furnace Temperature/Time Heating process
specification
Forging production
procedure
2
↓		 Forging Press Reduction ratio,forging
temperature,deformation,
Surface and dimensions		 Forging process card
Forging procedure
3
↓		 Heat treatment heat treatment
furnace		 heat treatment charts 1st heat-treatment card
Forging procedure
4
↓		 Rough
inspection		 Dimensions, apperance,
Mark		 Inspection specification
Forging procedure
5
↓		 Rough UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation		 UT standard or
customer's technical
requirements
6
↓		 Saw cutting Saw machine Dimension IQC and forging
7
↓		 rough turning turning-lathe Dimension,appearance Rough machining
drawing
8
↓		 UT UT equipment Single defect, concentrated
defects bottom wave attenuation		 UT standard or
customer's technical
requirements
9
↓		 Q+T
heat treatment		 heat treatment
furnace		 heat treatment charts Heating process
specification
10
↓		 Sampling or machining machining tool rough machining drawing
sampling drawing		 sample machining
drawing
11
↓		 mechanical
property test		 tensile testing machine/
impact testing machine		 ambient temperature,humidity,
Test temp.Sample dimension,
test method		 Standard
technical specification
12
↓		 finish
machining		 machining
tool		 Dimension,appearance finish machining drawing
13
↓		 UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation		 UT standard or
customer's technical
requirements
14
↓		 MT MT equipment Magnetic particle
indication		 Test standard or
Technical requirements
15
↓		 Mark Steel seal marking content Product standard
Technical requirements
Forging process
16
↓		 Final
inspection		 Appearance, dimension, mark
acceptance inspection		 Product inspection
specification
Product standard
P.O.
17 Protection/
package		 Blasting
Blasting equipment		 appearance
coating thickness		 Product standard
Technical requirements

Open Die Forged AISI4140 Out Diameter 3000mm Forged Gear Blanks Used For Bearing Valve
